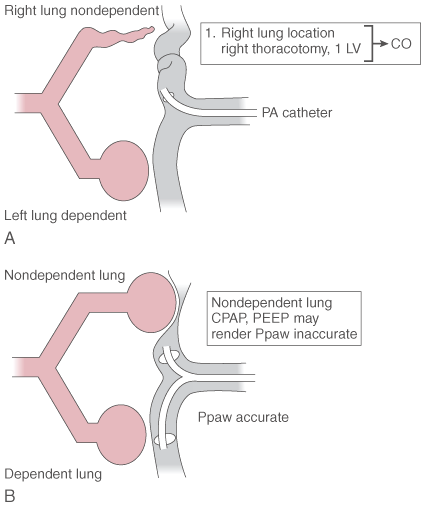

Figure 49-5
Conditions during thoracotomy in the lateral decubitus
position when pulmonary artery (PA) catheter data may be inaccurate. A,
During right thoracotomy with a PA catheter located in the collapsed right lung (one-lung
ventilation [1 LV]), cardiac output (CO) may be lower than when the right lung is
ventilated. The thermistor in the collapsed lung may be exposed to abnormal flow
patterns or vascular wall interference. B, When the
PA catheter is in the nondependent lung and the nondependent lung is exposed to continuous
positive airway pressure (CPAP) or positive end-expiratory pressure (PEEP), pulmonary
artery wedge pressure (Ppaw) may be inaccurate. Nondependent lung CPAP or PEEP may
cause zone 1 conditions in the nondependent lung. Ppaw is probably always reasonably
accurate when the PA catheter is in the dependent lung, even if the dependent lung
is exposed to PEEP. (From Benumof JL: Anesthesia for Thoracic Surgery.
Philadelphia, WB Saunders, 1987.)
