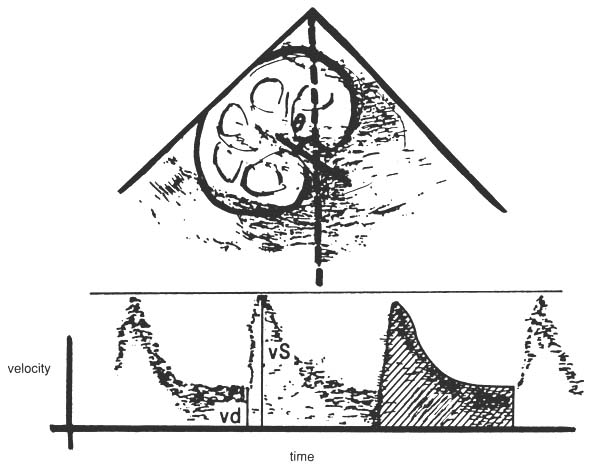

Figure 37-11 Renal duplex scan shows a sample volume superimposed over a B-scan image for a typical normal velocity flow pattern from the main renal artery at the hilum. theta, angle of incidence between transmitted ultrasound signal and received ultrasound signal; vd, diastolic velocity; vS, systolic velocity.
