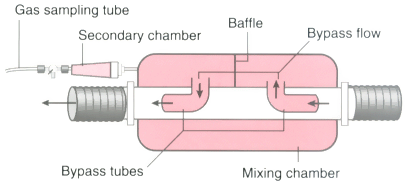

Figure 36-5 Bymixer. This compartment, placed in the expiratory limb of a circle system, provides a mixing chamber through which a portion of the exhaled gas flows. Mixing of gas within this chamber provides constant mixed expired O2 and CO2 concentrations, from which V̇O2 , V̇CO2 , and dead space can be calculated. (Adapted from Breen PH, Serina ER: Bymixer provides on-line calibration of measurement of CO2 volume exhaled per breath. Ann Biomed Eng 25:164, 1997.)
