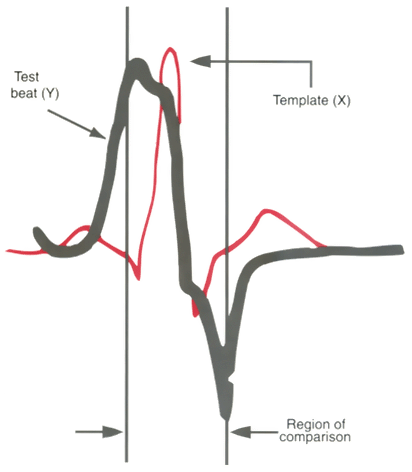

Figure 34-28 Computerized template of the underlying normal QRS complex (X) and an ectopic complex called a test beat (Y). Beat Y is matched to beat X by the computer during the region of comparison by cross-correlation algorithms. (Adapted from Morganroth J: Ambulatory Holter electrocardiography: Choice of technique and clinical uses. Ann Intern Med 102:73, 1985.)
