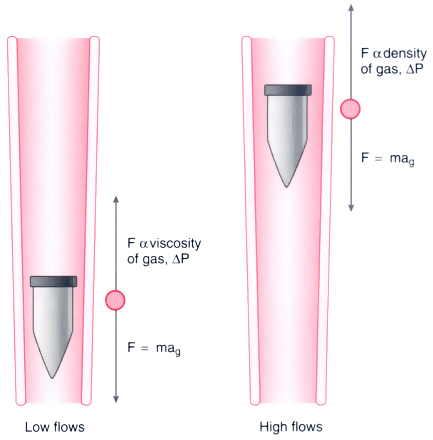

Figure 30-20 Thorpe tube flow meter. At low flows, the viscosity of gas predominates (acts like a tube), and the flows balance when the gravitational attraction equals the pressure gradient across the equivalent orifice. At higher flows, density takes over, and the balance is the same, except for the formula determining pressure (acts like an orifice) (see Appendix 5 ).
