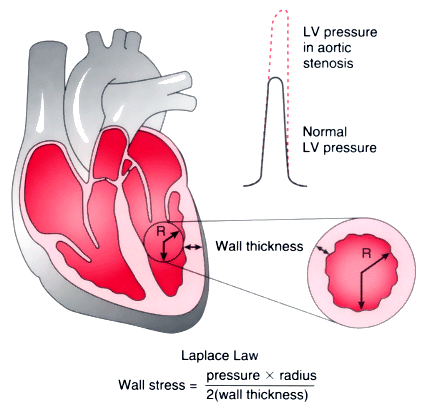

Figure 18-4
In response to aortic stenosis, left ventricular pressure
increases. To maintain wall stress at control levels, compensatory left ventricular
hypertrophy develops. According to Laplace's law, wall stress =
pressure × radius ÷ (2 × wall thickness). Therefore,
the increase in wall thickness offsets the increased pressure and wall stress is
maintained at control levels. (From Opie LH: Ventricular function. In
The Heart. Physiology from Cell to Circulation, 3rd ed. Philadelphia, Lippincott-Raven,
1998, pp 343–389.)
