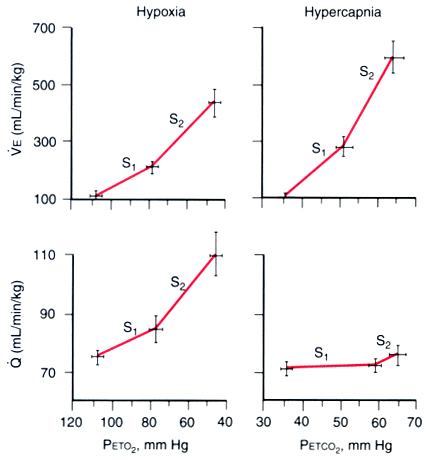

Figure 17-41
Changes in the minute ventilation and the circulation
of healthy awake humans during progressive isocapnic hypoxia and hyperoxic hypercapnia.
PETCO2
, end-tidal PCO2
;
PETO2
, end-tidal PO2
;
, cardiac output; S1
, slope during the first phase of slowly increasing
ventilation and/or circulation; S2
, slope during the second phase of sharply
increasing ventilation and/or circulation. V̇E,
expired minute ventilation. (Redrawn from Serebrovskaya TV: Comparison
of respiratory and circulatory human responses to progressive hypoxia and hypercapnia.
Respiration 59:35, 1992.)
