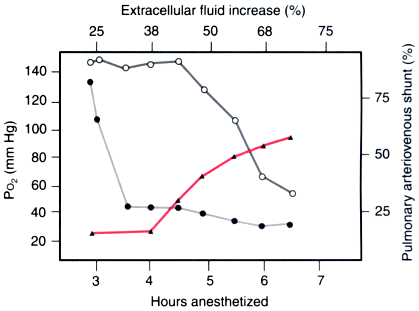

Figure 17-36
Mongrel dogs anesthetized with pentobarbital (bottom
axis), placed in a lateral decubitus position, and subjected to progressive
extracellular fluid expansion (top axis) have a marked
decrease in the PO2
(left
vertical axis) of blood draining the dependent lung (solid
circles) and a smaller, much slower decrease in the PO2
of blood draining the nondependent lung (open circles).
The pulmonary arteriovenous shunt (right vertical axis)
rises progressively (triangles). (Redrawn
from Ray JF, Yost L, Moallem S, et al: Immobility, hypoxemia, and pulmonary arteriovenous
shunting. Arch Surg 109:537, 1974.)
