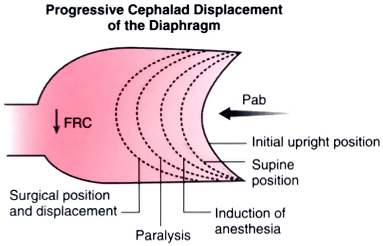

Figure 17-33
Anesthesia and surgery may cause a progressive cephalad
displacement of the diaphragm. The sequence of events involves assumption of the
supine position, induction of anesthesia, establishment of paralysis, assumption
of several surgical positions, and displacement by retractors and packs. Cephalad
displacement of the diaphragm results in decreased functional residual capacity (↓
FRC). Pab, pressure of abdominal contents. (Redrawn with modification from
Benumof JL: Anesthesia for Thoracic Surgery, 2nd ed. Philadelphia, WB Saunders,
1995, Chapter 8.)
