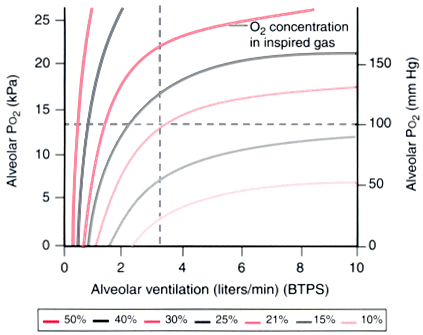

Figure 17-24 For any given O2 concentration in inspired gas, the relationship between alveolar ventilation and PAO2 is hyperbolic. As the inspired O2 concentration is increased, the amount that alveolar ventilation must decrease to produce hypoxemia is greatly increased. BTPS, body temperature, ambient pressure, saturated. (Redrawn from Lumb AB: Respiratory system resistance: Measurement of closing capacity. In Lumb AB [ed]: Nunn's Applied Respiratory Physiology, 5th ed. London, Butterworths, 2000, p 79.)
