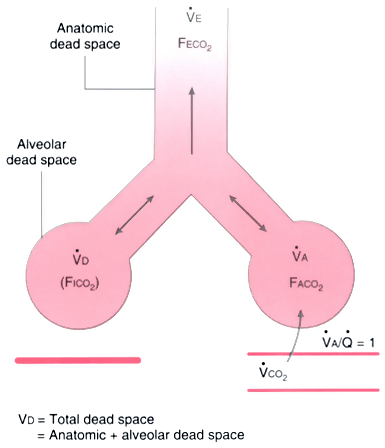

Figure 17-21 Two-compartment model of the lung in which the anatomic and alveolar dead space compartments have been combined into the total (physiologic) dead space (VD). FACO2 = alveolar CO2 fraction; FECO2 = mixed expired CO2 fraction; FICO2 = inspired CO2 fraction; V̇A = alveolar ventilation; V̇A/ = 1 means ventilation and perfusion are equal in liters per minute; V̇CO2 = carbon dioxide production; V̇E = expired minute ventilation. Normally, the amount of CO2 eliminated at the airway (V̇E × FECO2 ) equals the amount of CO2 removed by alveolar ventilation (V̇A × FACO2 ) because there is no CO2 elimination from alveolar dead space (FICO2 = 0).
