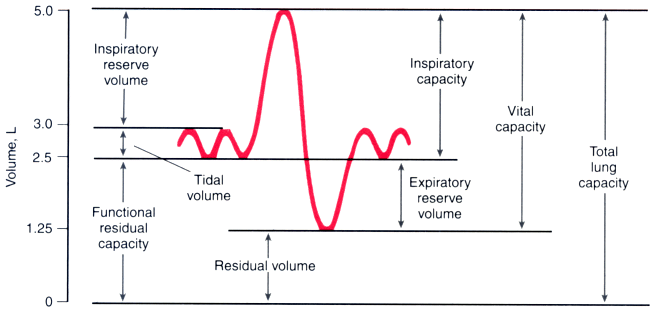

Figure 17-16 The dynamic lung volumes that can be measured by simple spirometry are tidal volume, inspiratory reserve volume, expiratory reserve volume, inspiratory capacity, and vital capacity. The static lung volumes are residual volume, functional residual capacity, and total lung capacity. Static lung volumes cannot be measured by simple spirometry and require separate methods of measurement (e.g., inert gas dilution, nitrogen washout, or whole-body plethysmography).
