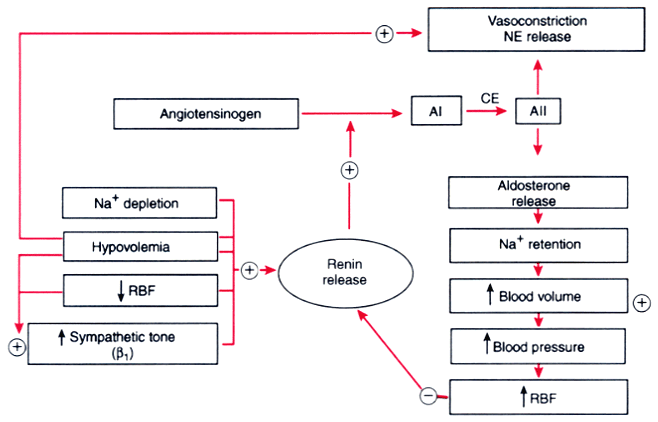

Figure 16-7 The interactions of the renin-angiotensin-aldosterone and sympathetic nervous systems in maintaining blood pressure and volume. Al, angiotensin I; All, angiotensin II; CE, converting enzyme; NE, norepinephrine; RBF, renal blood flow; +, stimulating effects; -, inhibiting effects.
