Figure 14-7

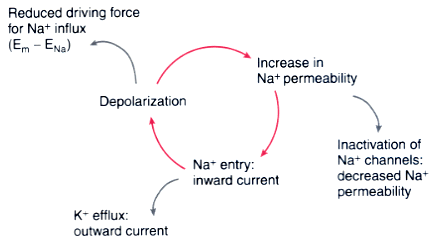

The action potential can be understood in terms of the
cyclic relationships between factors contributing to the regenerative, depolarizing
phase and the passive repolarizing phase. Positive factors (red
arrows) increase the rate of depolarization in a "positive-feedback loop,"
with each element in the cycle favoring the subsequent one. Negative factors (gray
arrows) decrease the depolarization rate by reducing or opposing the related
positive factor, with K+
efflux eventually dominating the ionic flow and
repolarizing the membrane.
