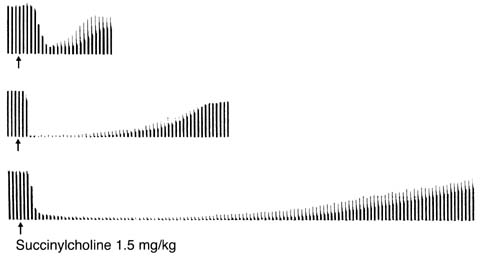

Figure 13-38
Electromyographic response to ulnar nerve stimulation
by train-of-four stimulation every 20 seconds. Shown is the effect of 1.5 mg/kg
succinylcholine in three myasthenic patients with differing butyrylcholinesterase
activity. Upper tracing, butyrylcholinesterase =
5.16 U/mL; middle tracing, butyrylcholinesterase
= 1.45 U/mL; lower tracing, butyrylcholinesterase
= 0.73 U/mL. (From Baraka A: Suxamethonium block in the myasthenic patient.
Correlation with plasma cholinesterase. Anaesthesia 47:217–219, 1992.)
