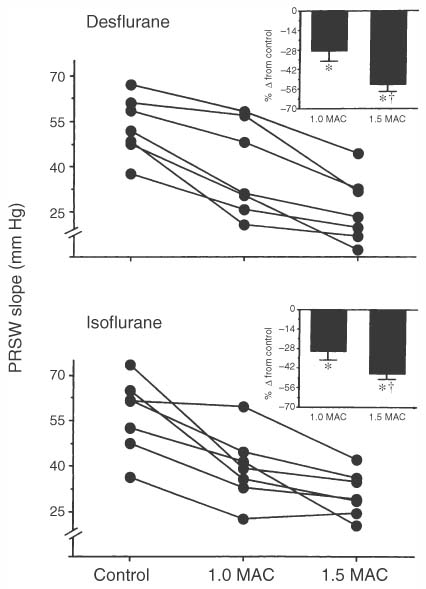

Figure 7-2
Preload recruitable stroke work (PRSW) slope for chronically
instrumented dogs during control and at 1.0 and 1.5 end-tidal minimum alveolar concentrations
(MAC) of desflurane (top) and isoflurane (bottom).
Insets depict percent changes from control values.
*, Significantly (P < .05) different from
controls; †, significantly (P < .05) different
from 1.0 MAC. (From Pagel PS, Kampine JP, Schmeling WT, Warltier DC: Influence
of volatile anesthetics on myocardial contractility in vivo: Desflurane versus isoflurane.
Anesthesiology 74:900–907, 1991.)
