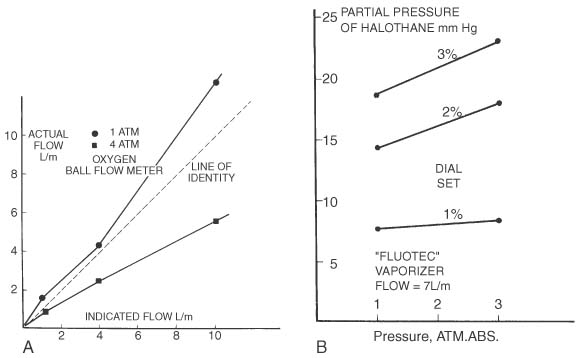

Figure 70-13
Performance of an anesthetic vaporizer system at increased
ambient pressure. A, Flow characteristics of a rotameter
system as shown. At 4 ATA the actual delivered flow is less than 60% of the flow
indicated by the rotameter. B, Fluotec vaporizer
output in partial pressure of halothane as a function of ambient pressure. Only
small increases in delivered partial pressure are evident at 3 ATA, at the 2% and
3% settings. (From Committee on Hyperbaric Oxygenation: Fundamentals of
Hyperbaric Medicine [Publication No. 1298]. Washington, DC, National Academy Press,
1966.)
