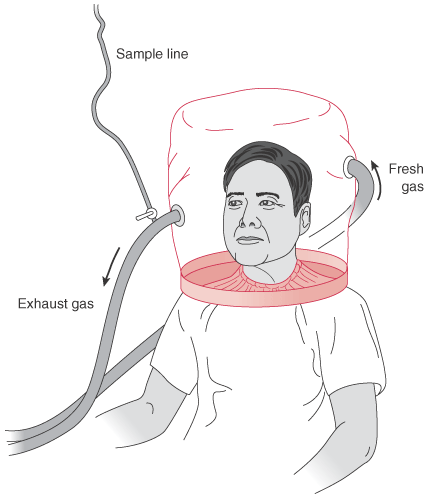

Figure 70-6
Head tent circuit for use in a multiplace chamber. Fresh
gas (100% O2
) flows at a constant rate (>30 L/min) through the head
tent. Exhaust gas may be either vented outside the chamber or recirculated through
a CO2
scrubber. The sample line attached to the exhaust hose allows monitoring
of the patient's breathing gas.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
