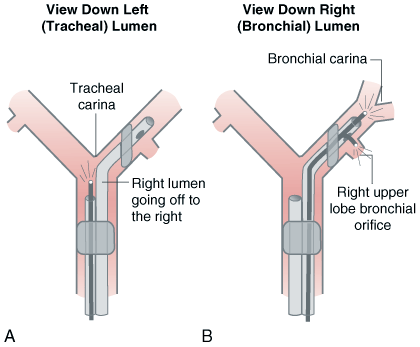

Figure 49-21 This schematic diagram portrays the use of a fiberoptic bronchoscope to determine precise right-sided double-lumen tube position. A, When the fiberoptic bronchoscope is passed down the left (tracheal) lumen, the endoscopist should see a clear straight-ahead view of the tracheal carina and the right lumen going off into the right main stem bronchus. B, When the fiberoptic bronchoscope is passed down the right (bronchial) lumen, the endoscopist should see the bronchial carina off in the distance; when the fiberoptic bronchoscope is flexed cephalad and passed through the right upper lobe ventilation slot, the right upper lobe bronchial orifice should be visualized. (From Benumof JL: Anesthesia for Thoracic Surgery. Philadelphia, WB Saunders, 1987.)
