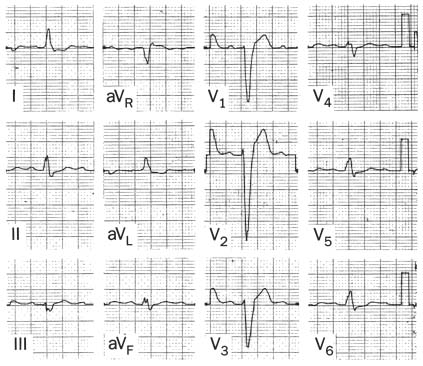

Figure 34-21
Left bundle branch block. Notice the rS pattern in V1
and the notched rR' pattern in V6
. In V5
and V6
,
a moderate depression of the ST segment is seen. (Adapted from Thys DM,
Kaplan JA: The ECG in Anesthesia and Critical Care. New York, Churchill Livingstone,
1987.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
