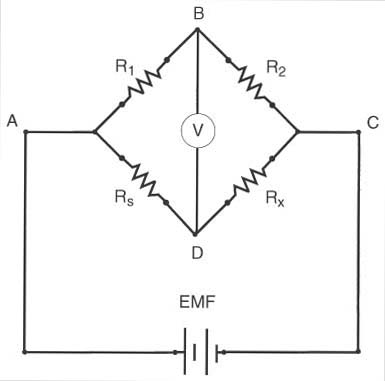

Figure 30-36 Wheatstone bridge. A Wheatstone bridge is an electronic circuit designed so that an unknown resistance can be calculated by knowing two sets of variables: (1) the voltage drop across the bridge and (2) the other resistances in the circuit (see Appendix 3 ).
