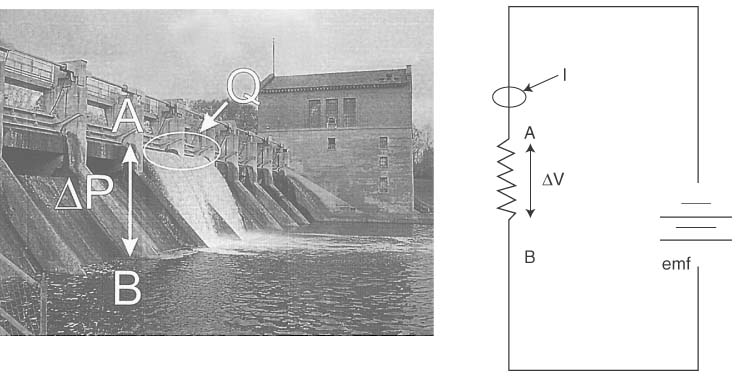

Figure 30-27 Water and electricity. The pressure drop over the dam (A to B) is analogous to the voltage drop over the resistance (A to B) (e.g., light bulb). The amount of flow (width of water) () is analogous to the current (I). Both falling water and electrical potential can do work, as evidenced by the use of dams to generate electricity and electricity to pump water.
