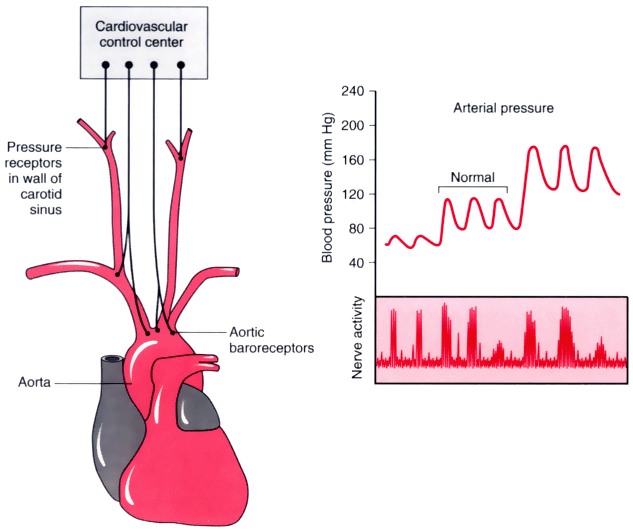

Figure 18-18
Anatomic configuration of the baroreceptor reflex. Pressure
receptors in the wall of the carotid sinuses and aorta detect arterial pressure changes
in the circulation. These signals are conveyed to afferent receptive regions of
the medulla through the Hering and vagus nerves. Output from effector portions of
the medulla modulates peripheral tone and heart rate. The increase in blood pressure
results in increased activation of the reflex (right),
which effects a decrease in blood pressure. (From Campagna JA, Carter C:
Clinical relevance of the Bezold-Jarisch reflex. Anesthesiology 98:1250–1260,
2003.)
