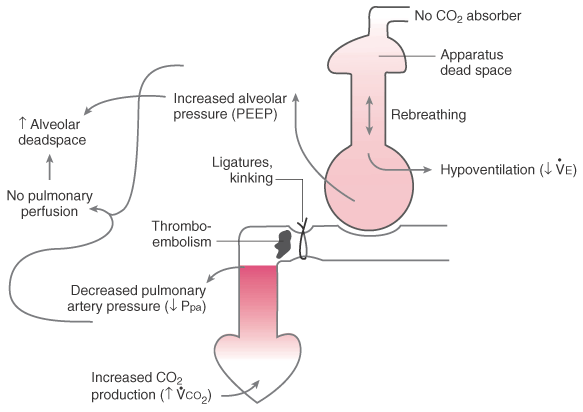

Figure 17-40 Schematic diagram of the causes of hypercapnia during anesthesia. An increase in carbon dioxide (CO2 ) production (V̇CO2 ) will increase PaCO2 with a constant minute ventilation (V̇E). Several events can increase alveolar dead space: a decrease in pulmonary artery pressure (Ppa), the application of positive end-expiratory pressure (PEEP), thromboembolism, and mechanical interference with pulmonary arterial flow (ligatures and kinking of vessels). A decrease in V̇E causes an increase in PaCO2 with a constant V̇CO2 . It is possible for some anesthesia systems to cause rebreathing of CO2 . Finally, the anesthesia apparatus may increase the anatomic dead space, and inadvertent switching off of a CO2 absorber in the presence of low fresh gas flow can increase PaCO2 . (Redrawn with modification from Benumof JL: Anesthesia for Thoracic Surgery, 2nd ed. Philadelphia, WB Saunders, 1995, Chapter 8.)
