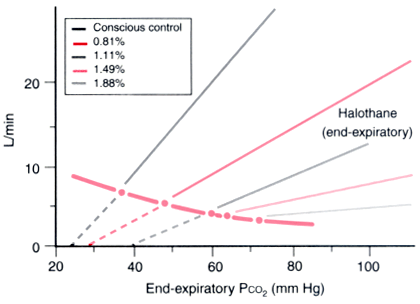

Figure 17-31
In conscious controls (heavy solid
line), increasing end-expiratory PCO2
increases pulmonary minute volume. The dashed line
is an extrapolation of the CO2
response curve to zero ventilation and
represents the apneic threshold. An increase in anesthetic (halothane) concentration
(end-expiratory concentration) progressively diminishes the slope of the CO2
response curve and shifts the apneic threshold to a higher PCO2
.
The heavy line interrupted by dots shows the decrease
in minute ventilation and the increase in PCO2
that occur with increasing depth of anesthesia. (Redrawn with modification
from Munson ES, Larson CP Jr, Babad AA, et al: The effects of halothane, fluroxene
and cyclopropane on ventilation: A comparative study in man. Anesthesiology 27:716,
1966.)
