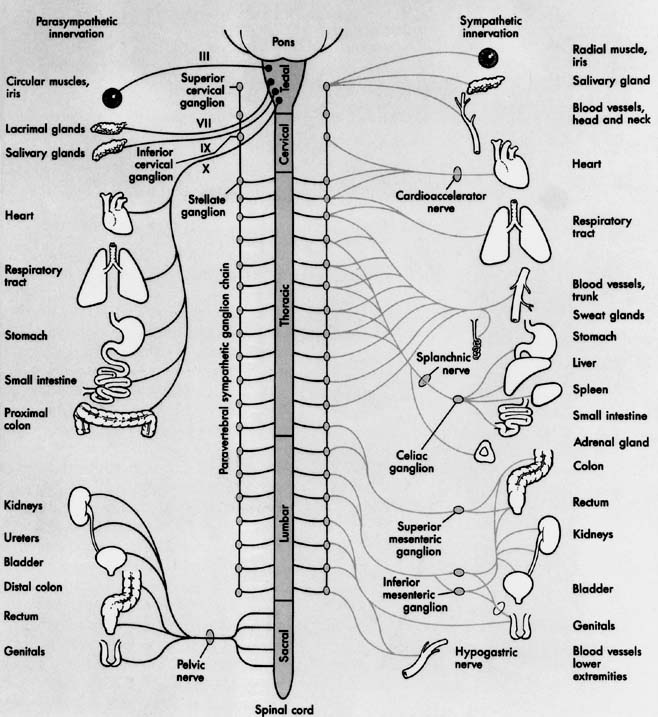

Figure 16-6
Schematic representation of the autonomic nervous system
depicting the functional innervation of peripheral effector organs and the anatomic
origin of peripheral autonomic nerves from the spinal cord. Although both paravertebral
sympathetic ganglia chains are presented, the sympathetic innervation to the peripheral
effector organs is shown only on the right part of the figure, whereas the parasympathetic
innervation of peripheral effector organs is depicted on the left. The roman numerals
on nerves originating in the tectal region of the brainstem refer to the cranial
nerves that provide parasympathetic outflow to the effector organs of the head, neck,
and trunk. (From Ruffolo R: Physiology and biochemistry of the peripheral
autonomic nervous system. In Wingard L, Brody T,
Larner J, et al [eds]: Human Pharmacology: Molecular to Clinical. St. Louis, Mosby-Year
Book, 1991, p 77.)
