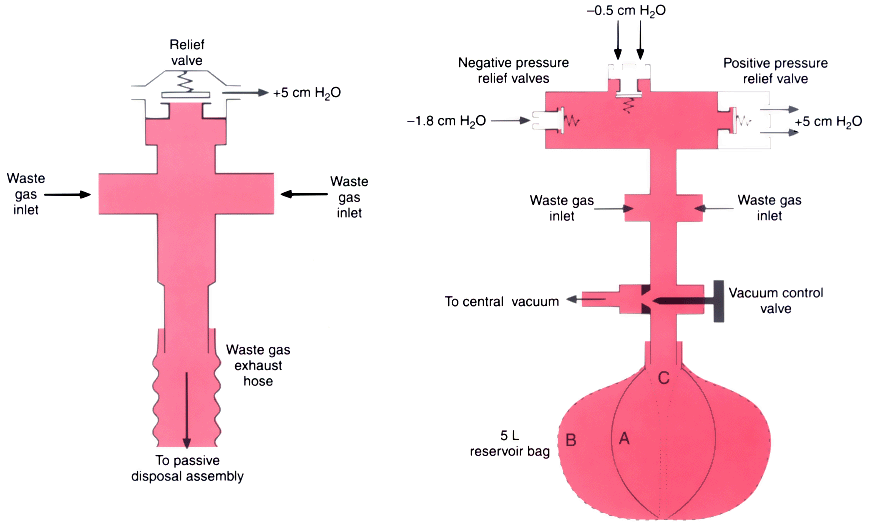

Figure 9-29
Closed scavenging interfaces. Interface used with a
passive disposal system (left). Interface used with
an active system (right). (Left,
Adapted from Scavenger Interface for Air Conditioning: Instruction Manual. Telford,
PA, North American Dräger, October 1984; right,
Adapted from Narkomed 2A Anesthesia System: Technical Service Manual. Telford,
PA, North American Dräger, 1985.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
