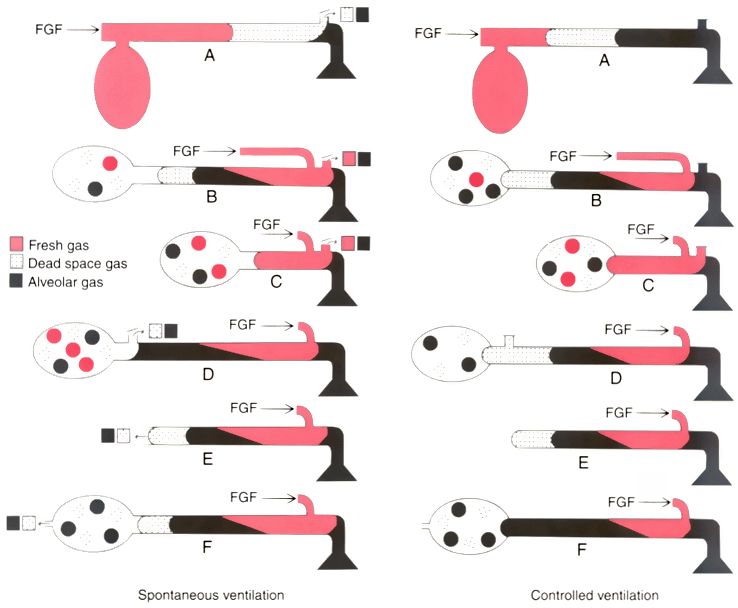

Figure 9-20 Gas disposition at end expiration during spontaneous (left) and controlled (right) ventilation in circuits A through F. FGF, fresh gas flow. (Adapted from Sykes MK: Rebreathing circuits: A review. Br J Anaesth 40:666, 1968.)
