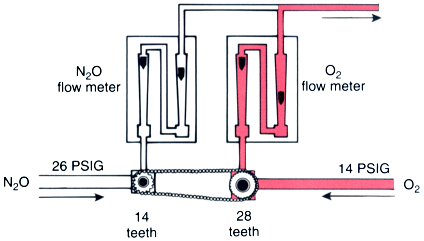

Figure 9-11 In the Ohmeda Link-25 Proportion-Limiting Control System, the nitrous oxide and oxygen flow control valves are identical. A 14-tooth sprocket is attached to the nitrous oxide flow control valve, and a 28-tooth sprocket is attached to the oxygen flow control valve. A chain links the sprockets. The combination of the mechanical and pneumatic aspects of the system yields the final oxygen concentration. The Datex-Ohmeda Link-25 proportioning system can be thought of as a system that increases oxygen flow when necessary to prevent delivery of a fresh gas mixture with an oxygen concentration of less than 25%. (Adapted from Andrews JJ, Brockwell RC: Delivery systems for inhaled anesthetics. In Barash PG, Cullen BF, Stoelting RK [eds]: Clinical Anesthesia, 4th ed. New York, Lippincott-Raven, 2000, pp 567–594.)
