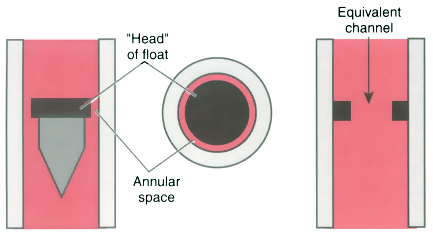

Figure 9-7 The clearance between the head of the float and the flow tube is known as the annular space. It can be considered an equivalent to a circular channel of the same cross-sectional area. (Adapted from Macintosh R, Mushin WW, Epstein HG: Physics for the Anaesthetist, 3rd ed. Oxford, UK, Blackwell Scientific Publications, 1963.)
