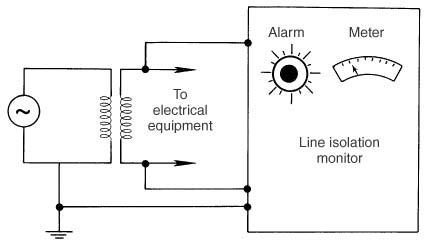

Figure 87-3 Schematic diagram shows the complete connections of the line isolation monitor (LIM). The alarm sounds a "first fault" if either isolated power line has less than 25,000 ohms of impedance, corresponding to 2 mA or more being drawn through the LIM.
