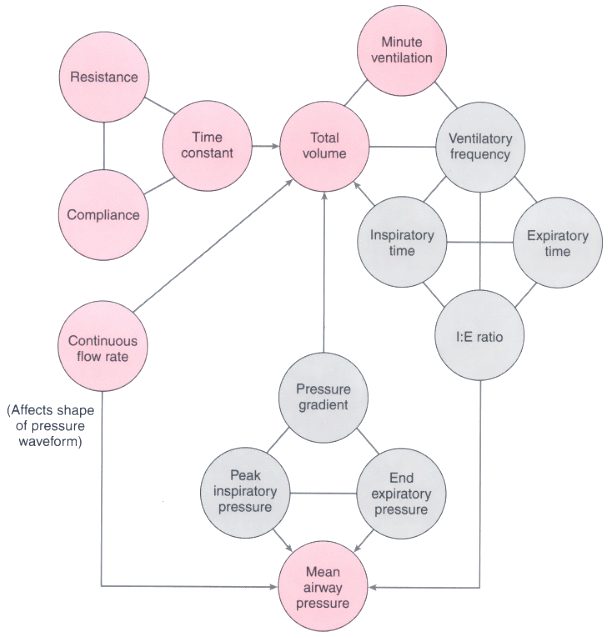

Figure 75-7 Control variables and their interconnection for modes of pressure-targeted ventilation. (Adapted from Chatburn RL, Lough MD: Mechanical ventilation. In Lough MD, Doershuk CF, Stern RC [eds]: Pediatric Respiratory Therapy. Chicago, Year Book, 1985, pp 148–191.)
