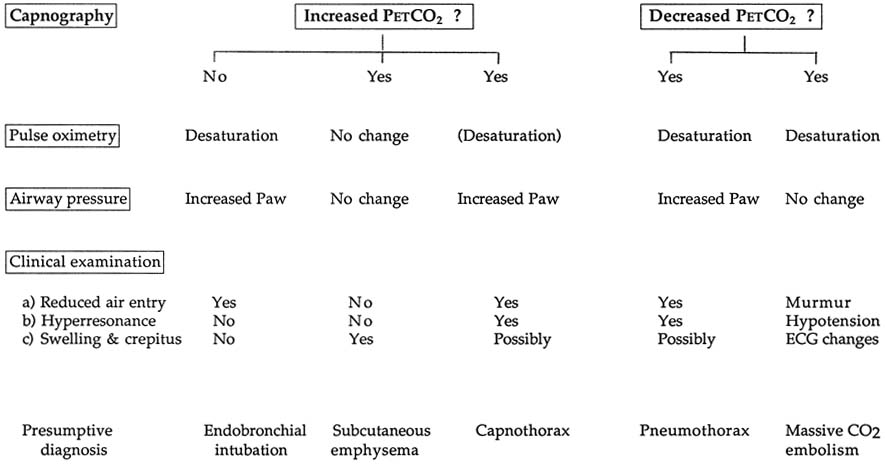

Figure 57-4
Diagnosis of respiratory complications during laparoscopy.
ECG, electrocardiographic; Paw, airway pressure; PETCO2
,
end-tidal carbon dioxide tension. (Data from Wahba RW, Tessler MJ, Kleiman
SJ: Acute ventilatory complications during laparoscopic upper abdominal surgery.
Can J Anaesth 43:77, 1996.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
