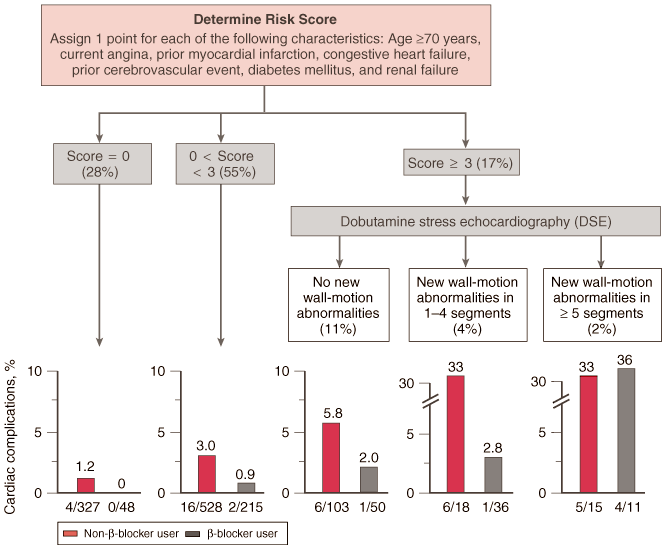

Figure 52-10
Perioperative cardiac risk of death or myocardial infarction
as observed in subpopulations. Results are given according to the clinical risk
score, dobutamine stress echocardiography, and perioperative β-blocker therapy.
Percentages in parentheses represent the number of patients in the target category
as a proportion of the total number of 1351 patients. Numbers underneath the bars
represent the actual number of events (i.e., cardiac death and nonfatal myocardial
infarction) per the patients in the specific category. (From Boersma E,
Poldermans D, Bax JJ, et al: Predictors of cardiac events after major vascular surgery:
Role of clinical characteristics, dobutamine echocardiography, and beta-blocker
therapy. JAMA 285:1865–1873, 2001.)
